Metal Fiber Laser Marking Machine Destop Engraving 0.5mm For Stainless Steel For Gold And Silver
Characteristc:
1 . High-tech,and it can make on both metal and non-metal
2 . Self-clean system
3 . Lifetime over 100000hours
4 . Accuracy and speed is very well
5 . This Fiber laser marking machine price is economic and reasonable
Applicable Material:
Laser marking machine can work with most metal marking applications, such as Gold, Silver, Stainless Steel, Brass, Aluminum, Steel, Iron etc, and can also mark on many non-metal materials, such as ABS, Nylon, PES, PVC, Makrolon.
Application:
1) Film Cutting;
2) Precission Marking;
3) Texturing Treatment;
4) Anodic Aluminum Etching;
5) Precesion Cleaning ;
6) Colorful Marking;
7) Surface Heat;
Technical Parameters:
| Laser Characteristics |
| Model | KY-M-FB20P-M |
| Laser Resource | MOPA JPT M1 |
| Beam Quality | <1.3 |
| Delivery Cable Length | 2m |
| Maximum Pulse Energy | 0.5mJ |
| Full Power Repetion Rate Range | 40-2000kHz |
| Pulse Repetion Rate Range | 1-2000KHZ |
| Pulse Width | 6-250ns |
| Longtime Average Power Stability | <5% |
| Cooling method | Air cooled |
| Supply DC Voltage(VDC) | 24V |
| Current Consumption | <8A |
| Full Power Consumption | 120W |
| Central Emission Wavelength | 1064nm |
| Emission Bandwidth@3dB | <15nm |
| polarization | Random |
| Anti-Reflection Protection | YES |
| Output Beam Diameter | 7±0.5(mm) |
| Output Power Tuning Range | 0-100% |
| Operation Temperature | 0-40℃ |
| Storage Temperature | -10-60℃ |
| Laser Safety Level | ClassIV |
| System Protection Rating | IP54 |
| Marking Parameters |
| Marking Range | 45～300(mm)＠EFL=80-450(mm) |
| Marking Speed | 0-7000(mm/s) |
| Marking depth / Roman Type , Character Height 1mm | 0.01-2(mm)depenging on the material |
| Marking Content/ Character Types | Text/letters/numbers/symbols/graphics/design/logo, etc. Date/time/QR code / Barcode/ batch number/serial number, etc. real-time number coding |
| Minimum character | 0.1(mm) |
| Marking Line width | 0.01-0.2(mm) depending on the material |
| Repetion Precision | ±0.003(mm) |
| Other Information |
| Delivery Cable Length | 3(m) |
| Pump laser life | >50000(hrs) |
| Interface Model | DB25 |
| Cooling | Air cooling |
| Power | 220±5%(V),50±5%(Hz) |
| Power Consumption | <0.12(KW) |
| Waranty | 2 years
|

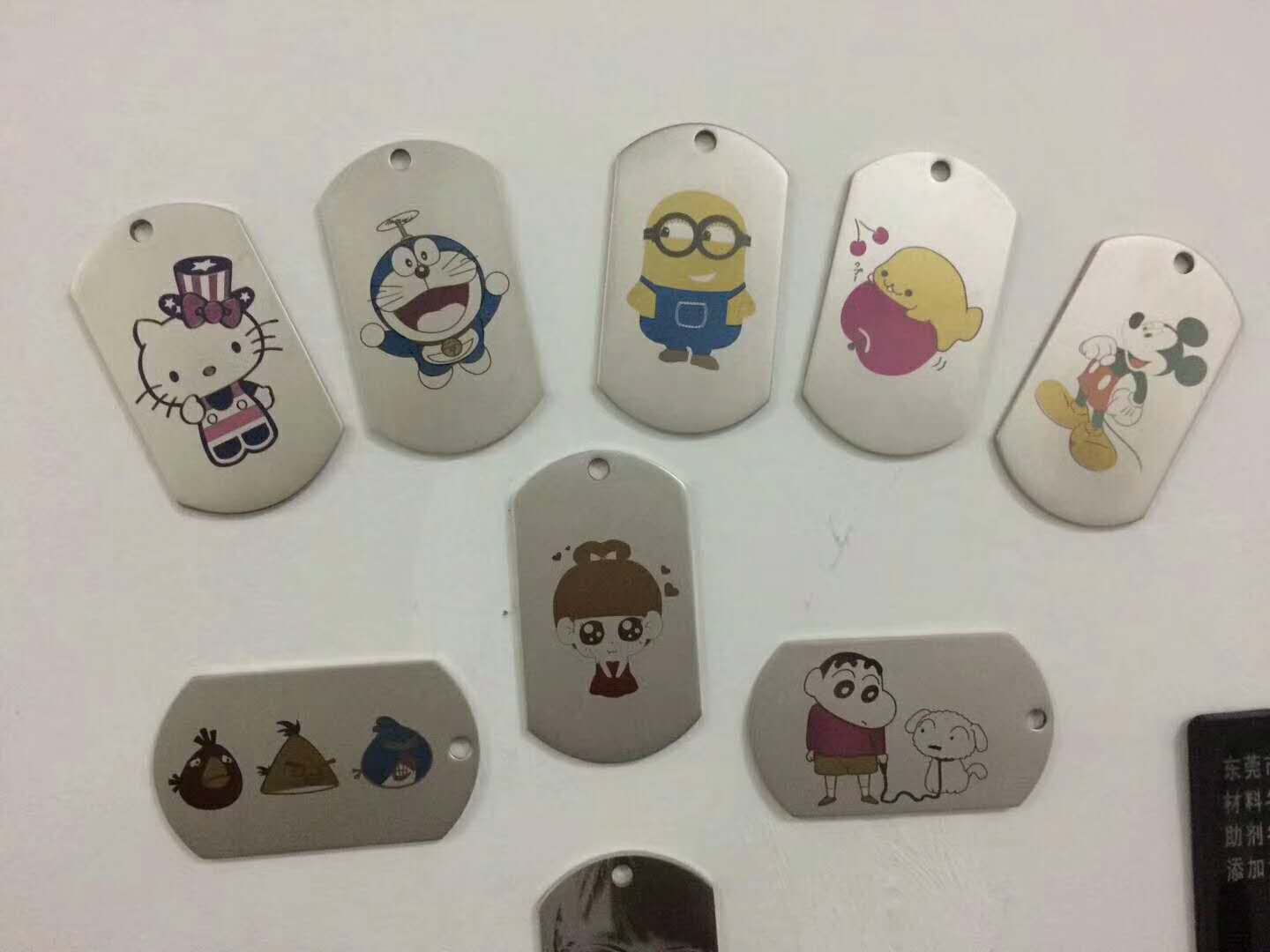

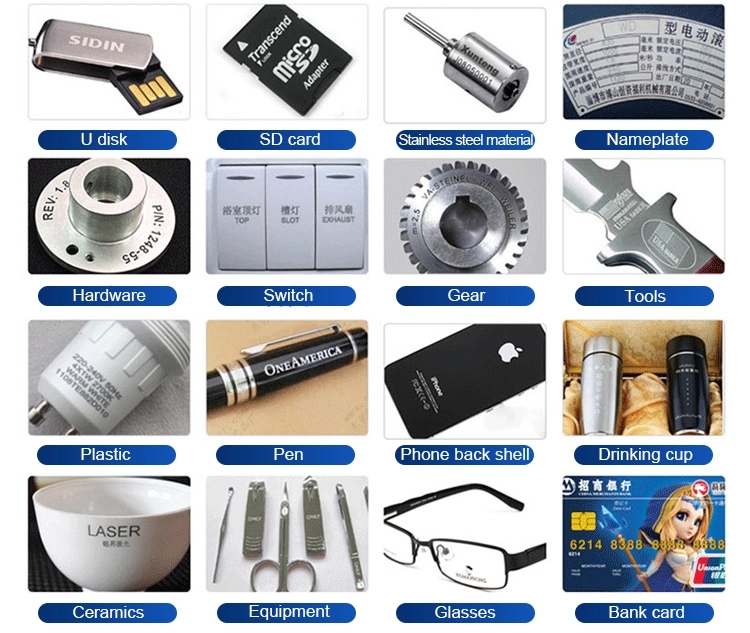

Sample Pictures:
